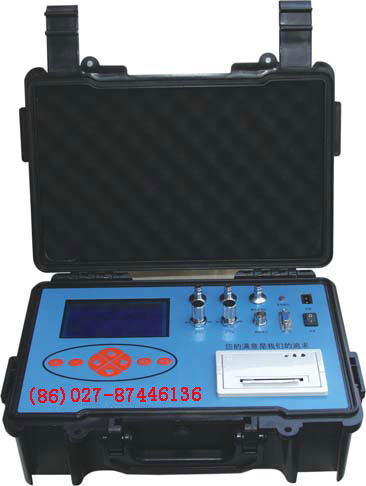

HRMJC SF6智能型密度继电器校验仪

  一、仪器概述
HRMJC型智能型SF6密度继电器校验仪,是一种智能化全自动的SF6密度继电器校验仪器。该仪器采用微机技术,能对各种SF6密度继电器进行校验,以及对SF6气体任意环境温度下的压力进行标准换算的一种便携式校验仪器,也为SF6电气产品的生产、安全运行、预试和维护提供方便。
在封闭容器中,一定温度下的SF6气体压力可代表SF6气体的密度。为了能够统一,习惯上常把20℃时SF6气体压力作为标度值。在现场校验时,在不同的环境温度下,测量的压力值都要换算成其对应20℃时的压力值,从而判断SF6密度继电器的性能。型智能型SF6密度继电器校验仪对这个过程是自动完成的,既准确,又灵活方便。本仪器除可对SF6密度继电器校验外,还具有对压力表进行校验和仪器自校的功能,这样不仅可以一机多用,还免除了仪器送检和返厂校验的难题

  二、主要功能及特点
1. HRMJC型智能型SF6密度继电器校验仪采用高精度单片机为核心自动化程度高、重复性好、可靠性高
2. 仪器采用进口彩色大屏幕液晶,人性化界面操作方便简单,一目了然(5寸真彩屏)。
3. 仪器自动采集温度、压力测量和20℃压力的换算。并且时时显示温度、环境温度下的压力、及转换到20℃时的压力值。彻底解决了SF6密度继电器现场校验的难题。
4. 所有测试过程为自动测量,避免了由于人为因素而产生的误差。
5. 仪器有数据存储功能(可存储100组数据)并具有掉电数据保护功能,已方便以后对测量数据的查询。
6. 仪器可以在任意环境温度下对常温压力表和密度表进行校验。
7. 仪器管路全部采用快速接头,连接方便而且校验过程中不浪费气体。
8. 仪器内部具有时钟功能,也可在线对时钟进行修正。
9. 仪器具有自校功能。仪器长时间使用后可对仪器进行校验修正,以确保仪器的校验精度
10. 中文菜单界面,人机友好,操作简便。
11. 仪器采用0.2级高精度压力传感器和世界先进的磁流体技术产品。
12. 仪器配有多种开关过度接头,多数开关可以实现不用拆卸进行校验
13. 采用高容量内置电池,屏幕时时显示电池电量,极大的方便了现场校验工作可连续使用8小时以上。
14. 仪器具有带电测试(既测试是不用拆掉信号线),在信号线带有DC:110V/220V的情况下可以进行测试。

  三、主要技术参数
1 测量方式:自动测量
2 工作电源:AC220V±10% 50Hz DC12V (内置电源)
2 测量精度:0.25 级
3 显示方式:5寸真彩液晶显示
4 测量范围:0~0.9Mpa
5 压力显示分辨率:0.001 Mpa
6 仪器使用温度:-30~60℃ (最佳使用温度 5~50℃)
7 存储容量:100组
8 输入方式:金融系统专用金属键盘
9 打印方式:高速针打
10 温度范围:-50℃~125℃ 精度0.1℃
11 仪器重量:主机 5.0Kg
12 主机外形尺寸: 长420mm×宽285mm×高200mm
附件箱外形尺寸:长420mm×宽350mm×高200mm


HRMJC type SF6 intelligent density relay verification

  1) Instrument overview
HRMJC type intelligent SF6 density relay verification, it is a kind of intelligent automatic SF6 density relay calibration instrument. The apparatus adopts microcomputer technology, can to all sorts of SF6 density relay, and calibrated for SF6 gas arbitrary environmental temperature pressure standard conversion of a portable calibration instrument, and also for SF6 electrical products production, safe operation, pilot test and maintenance convenience.
In closed containers, certain temperatures of SF6 gas pressure can represent SF6 gas density. In order to be able to unity, the custom is often the 20 ℃ SF6 gas pressure when as scale-free values. On the spot check, in different environmental temperature, measuring pressure value are converted to their corresponding 20 ℃ when pressure value, thus judgment SF6 density relay performance. Type of intelligent SF6 density relay verification of this process is completed automatically, both accurate and agile and convenient. The instrument of SF6 density relay except calibration outside, still have to calibrate the instrument and the pressure gauge ZiJiao function, thus, it can not only multi-usage, also exempted equipment inspection and return factory calibration of difficult problems.

  2) Functions and features
a) HRMJC type intelligent SF6 density relay verification by highaccuracy single-chip microcomputer is a high degree of automation, repeatability and high reliability
b) Instrument adopts imported color LCD, human interface operation convenience simple, clear (5 inch true color).
c) Instrument automatic acquisition temperature, pressure measurement and 20 ℃ pressure of conversion. And always display temperature, environment temperature stress, and converting to 20 ℃ when pressure value.
d) All the testing process for automatic measurement, avoided because of human factors and produce error.
e) Instrumentation has data storage function (100 sets of data can be stored power lost data has already protection function, convenient for measurement data after the query.
f) Instruments can in any environment temperature under normal pressure gauges and density to calibrate the table.
g) Instrument pipe adopt speedy connector, connect convenient and calibration process does not waste gas.
h) Instrument interior has clock function, also can online to clock amended.
i) Instrument has ZiJiao function. Instrument used for long after to calibrate the instrument correction, to ensure that the instrument calibration precision
j) Chinese menu interface, man-machine friendly and easy operation.
k) Instrument adopts 0.2 level precision pressure sensor and world advanced MHD technology products.
l) Instrument allocated multiple switch excessive joint, most switch can be realized without removal for calibration
m) Using high capacity built-in battery, the battery power, display screen always great convenience the on-the-spot verification work continuously use 8 hours above.
n) Instrument has charged test (both test is not tear down signal line), the signal with DC: 110V / 220V circumstance can be tested.

  3) Technical parameters
a) Measurement methods: automatic measurement
b) Work power: AC220V + 10% 50Hz DC12V power) (built-in
c) Measuring precision: 0.25 level
d) Display mode: 5 "truecolor LCD display
e) Measuring scope: 0 ~ 0.9 Mpa
f) Pressure display resolution: 0.001 Mpa
g) Instrument use temperature: - 30 ~ 60 ℃ (best use temperature 5 ~ 50 ℃)
h) Storage capacity: 100 groups
i) Input methods: the financial system special metal keyboard
j) Print mode: high speed needle dozen
k) Temperature range: - 50 ℃ ~ 125 ℃ precision 0.1 ℃
l) Instrument weight: host 5.0 Kg
m) Host configuration dimensions: long 420mm x width 285mm x 200mm high, Accessory kit shape dimension: long 420mm x width 350mm x 200mm high





copyright © 2012-2018 cnhvt.com Inc. All rights reserved
本公司常年法律顾问:湖北国电天下律师事务所有限公司 盗用我公司产品型号的将依法追究其法律责任
中国武汉武高华瑞高电压科技有限公司版权所有0086-27-87446394 传真:027-87446394
明雅网建设 13429883699
