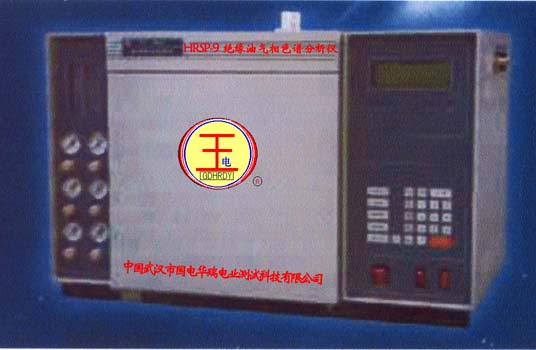

HRSP-9绝缘油气相色谱分析仪

  技术参数:
1.柱室温度:室温+15℃~350℃,控温精度±0.1~0.2℃
2.检测室温度:室温+30℃~350℃,控温精度±0.1~0.2℃
3.转化温度:室温+30℃~350℃,控温精度±0.1℃
4.TCD灵敏度,对H2的最小检测浓度<5ppm
5.FID对C2H2的检测浓度<0.1ppm;对CO、CO2的检测浓度<2ppm。
主要特点
1.采用微机控制,键盘设定,液晶显示,有随机记忆功能。
2.高性能检测器及甲烷转化器,检出能力完全满足电力部对变压器油中气体
组分含量的测定。
3.采用二次分流柱系统,分析速度快,重现性好.
4.双氢焰设计,使低含量的烃类和高含量的CO、CO2分别检测,避免相互干扰。
5.采用新型柱填料,双柱温流程,使C2H2检出时间提前,灵敏度提高,分析周期缩短
仪器介绍:

   HRSP-98型变压器油分析仪是在HRSP-9基础上根据电力部部颁标准,广泛吸收国内外同类仪器的优点而创新设计的多用途气相色谱仪。
仪器采用双柱并联分流柱系统,具有热导和双氢焰三检测器及转化炉,能一次进样实现油中溶解气体组分的全分析。
仪器主要应用于电力 系统充油电气设备内部故障检测,仪器兼有一机多用功能,可用于六氟化硫杂质分析,氢冷发电机冷却介质分析,锅炉烟气分析,天然气分析和环境监测分析等。另外,还广泛应用于石油、化工、矿山等系统的气体分析。




HRSP-9 Insulation Oil Gas Chromatographic Analyzer Technical parameter:



1. Column compartment temperature:room temperature +15℃~350℃,controlling temperature range: ±0.1~0.2℃
2. Testing room temperature: room temperature+30℃~350℃, controlling temperature range: ±0.1~0.2℃
3. Conversion temperature:room temperature+30℃~350℃,controlling temperature range:±0.1℃
4. TCD sensitivity, minimum detectable concentration to H2: <5ppm
5. Detectable concentration: FID to C2H2 <0.1ppm;detectable concentration to CO、CO2: <2ppm。

Main features:
1. It is controlled by computer, with liquid crystal display, owing the function of keyboard settings and random memory function.
2. High-performance tester and methanator, their capabilities fully meet the needs of the measurement standards to the transformer oil gas components of the Electricity Department.
3. Adopting the second triage system, the speed of analysis is fast, and reproduction quality is very good.
4.The double hydrogen flame design can test the low-content hydrocarbon and high-content CO、CO2 separately, which avoid the mutual interference.
5. It uses new columns of filling material; adopt the double-strut process, which made the testing time of C2H2 beforehand, the sensitivity increased and the analysis cycle shortened.

Instrument introduction:
According to the standard published by the Electricity Department, and its preexistence--the HRSP-9 transformer oil analyzer, extensively absorbing the advantages home and abroad, the HRSP-98 transformer oil analyzer, which is designed creatively, is a multi-use gas chromatograph.
The instrument which has tester and reformer for thermal conductance and double hydrogen flame, adopting double- columns parallel current system, can analyze the soluble gases of the oil in one time
It’s mainly used to test the internal faults of the electric appliance of the oil-charging power system. It has multifunction, such as the analysis of sculpture hexafluoride impurities, smokes and gases of boiler, environmental monitoring, and gases of the petroleum, industries and mines.









copyright © 2012-2018 cnhvt.com Inc. All rights reserved
本公司常年法律顾问:湖北国电天下律师事务所有限公司 盗用我公司产品型号的将依法追究其法律责任
中国武汉武高华瑞高电压科技有限公司版权所有0086-27-87446394 传真:027-87446394
明雅网建设 13429883699
