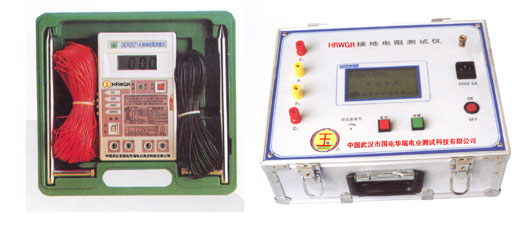

HRWGR大地网接地电阻测试仪

   本仪器采用微机控制、采样、数据处理,大屏幕液晶显示。可测量发电厂、变电站的大型地网采用异频法测试,精确度高,性能稳定,很好地解决了大型地网的工频电流干扰。测试电流仅有1~3A。仪器重量仅4kg,大大减轻试验劳动强度。
    输出电流:AC3A或5A(可与电脑联机操作使用,国电公司系统推荐使用产品,但性价比很高)
    输出电压:AC0~120V
    测量范围:0~100Ω或0~500Ω
    测量误差:<1%
    接线方式:三线法、四线法
    另可提供DER2571A/B(ZC-8)型地阻仪及多功能双钳口接地电阻仪(适合任意接地场所和接地状况,还可在线测量土壤电阻率和回路连接电阻)。

  ★HRWGR抗干扰地网接地电阻测试仪说明书
  引言:
电力设备接地网在变电设备的安全运行中,起着非常重要的作用。因此,我公司依据《电力设备接地技术规程》、《接地装置工频特定参数的测量导则》,结合变电设备接地网的实际情况,设计研发了HRWGR-3A型/5A型电力设备接地网接地电阻综合测量仪。该仪器采用三极法、变频法、大电流法等原理的优点,单片机为核心的智能检测系统,因而大大减小了大型地网接地电阻在测量过程中的各种干扰而引起的测量的误差,提高了测量精度,既可用三极法测量接地网的接地电阻,又可使用四极法对土壤电阻率进行测量,输出电流适中(I≦5A)。操作简便,界面清晰。测试数据迅速、准确、可靠。
二、 主要技术指标:
1. 测量内容:
● 电力设备接地网电阻(Ω)
● 土壤电阻率(Ω?M)
2. 测量范围:
● 电力设备接地网电阻: 0~20Ω
● 土壤电阻率: 0~9000Ω?M
3. 输入电源:220V±10% 50 Hz 3 A / 5A
4. 输出电压和电流:110V 0~3A / 0~5A
5. 输出频率:60Hz 40 Hz 自动双变频
6. 测量精度: ±2% +0.02Ω 分辨率:0.001Ω
7. 测量方式: 自动测量
8. 仪器重量:16kg(含防震箱)
9. 显示方式:LCD液晶显示
10. 打 印 机:EPSON微型打印机
11.测量条件:① 不停电测量
② 环境温度:0℃~60℃
③ 相对湿度:不大于85%
三、 主要功能及特点:
1、本仪器功能完善,可测量地网的接地电阻及土壤电阻率。
2、采用60Hz类工频进行测量,仪器采用高精度选频,可以最大限度避免工频及其他频率的干扰,使测量更加简单。
3、仪器重量轻、体积小携带方便,采用中文菜单,简洁明了的人机对话界面使仪器操作更为简单。



HRWGR Anti-interference Detector of Grounding Resistance for Earthing Grid

   It applies the controlling, sampling, data processing of microcomputer and displays by the large screen of liquid crystal. Testing the large erathing grid of power plant and substation by the abnormal frequency keeps high accuracy and stabilized performance; and efficiently resolves the industrial frequency current-interference. With only 1~3A testing current and 4kg weight, it greatly eases the labour intensity during the test.

Output current: AC3A or 5A (it can be used with computer on-line operation, our recommended product with high cost performance)
Output voltage: AC0~120V
Measuring range: 0~100Ω~500Ω
Measurement error: <1%
Connection: trilinear, four-line

In addition, it provides DER2571A/B(ZC-8)type terrameter and multifunctional grounding terranmeter with double jaw, which is suitable for any grounding occasions and conditions, and proceeds the online measuring of soil resistivity and circuit connecting resistance.


  Instruction of HRWGR Anti-interference Detector of Grounding Resistance for Earthing Grid
  One. Introduction:
HRWGR Anti-interference Detector of Grounding Resistance for Earthing Grid in the safe operation of the substation equipment, plays a very important role. Therefore, our company based on "power equipment grounding order", "grounding device-specific parameters in the frequency guide," and with substation equipment grounding grid of the actual situation, the design model developed HRWGR-0.4A,1A,3A / 5A Anti-interference Detector of Grounding Resistance for Earthing Grid. The instrument uses three-pole method, frequency method, high-current law the principle advantages of microcontroller as the core of the intelligent detection system, thus greatly reducing the large-scale measurement of grounding resistance in all kinds of interference in the process of measurement error caused improve the measurement accuracy, can use a three-pole ground resistance measurement of grounding grid, but also use the four-probe method for soil resistivity measurements, the output current is moderate (I ≦ 5A). Simple, clear interface. Test data quickly, accurately and reliably.

Second, the major technical indicators:
三、Measuring content:
● Power Equipment Grounding Grid Resistance (Ω)
● soil resistivity (Ω ? M)
2. Measuring range:
● Power Equipment Grounding Grid Resistance: 0 ~ 20Ω
● Soil Resistivity: 0 ~ 9000Ω ? M
3. Input Power: 220V ± 10% 50 Hz 3 A / 5A
4. Output voltage and current: 110V 0 ~ 3A / 0 ~ 5A
5. Output frequency: 60Hz 40 Hz dual frequency automatically
6. Measurement accuracy: ± 2% +0.02 Ω Resolution: 0.001Ω
7. Measurement: automatic measurement
8. Instrument Weight: 16kg (including shock box)
9. Display mode: LCD liquid crystal display
10. Printer: EPSON Micro Printer
11. Measurement conditions: ①no power measurement ②temperature: 0 ℃ ~ 60 ℃ ③ Relative humidity: no more than 85%

Third, the main functions and features:
1, the apparatus functional, measurable in net soil resistivity and ground resistance.
2, using measured frequency 60Hz class, high-precision frequency-selective use of instruments that can maximize the frequency and other frequencies to avoid interference, the measurement easier.
3, apparatus, light weight, small size and portable, the use of Chinese menus, simple and straightforward man-machine conversation interface makes operation of the device easier.








copyright © 2012-2018 cnhvt.com Inc. All rights reserved
本公司常年法律顾问:湖北国电天下律师事务所有限公司 盗用我公司产品型号的将依法追究其法律责任
中国武汉武高华瑞高电压科技有限公司版权所有0086-27-87446394 传真:027-87446394
明雅网建设 13429883699
